Infrared imaging provides important information relating to otherwise inaccessible areas of a property or object. Infrared detects extremely small but crucial differences in temperature from one area of a property or object to another.

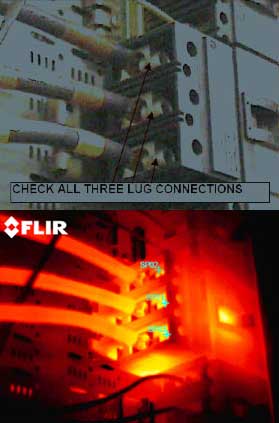

Electrical Terminal

Thermal image shows overload in electrical connection

External Furnace Surfaces

Refractory damage in industrial stack system

Metal Roofing

Moisture problem in industrial roofing system

Vinyl Apartment Siding

Discovered water leak on the right side of the third floor laundry room

Transformer

Overloaded transformer

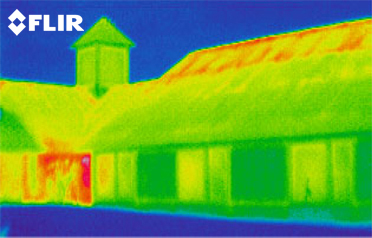

Elderly Property

Insulation leakage outlined in red

Advantages of Thermal Imaging

• You get a visual picture so that you can compare temperatures over a large area

• It is real time capable of catching moving targets

• Able to find deteriorating components prior to failure

• Measurement in areas inaccessible or hazardous for other methods

• It is a non-destructive test method

Applications for Thermal Imaging

• Building Diagnostics

• Manufacturing

• Moisture/ Restoration of Properties

• Mechanical/Electrical

• Roofing

• Utility market

• Pulp and Paper Industry

• Energy Star Audits

From single individual inspections to quarterly or full time programs in industry, Top to Bottom inspections thermal imaging department is able to provide you with all of your thermal imaging needs. For further information live demonstration in your field of operations, or a proposal, please contact Top to Bottom inspections.
